Him floor FC140 N


Epoxy resin floor coating

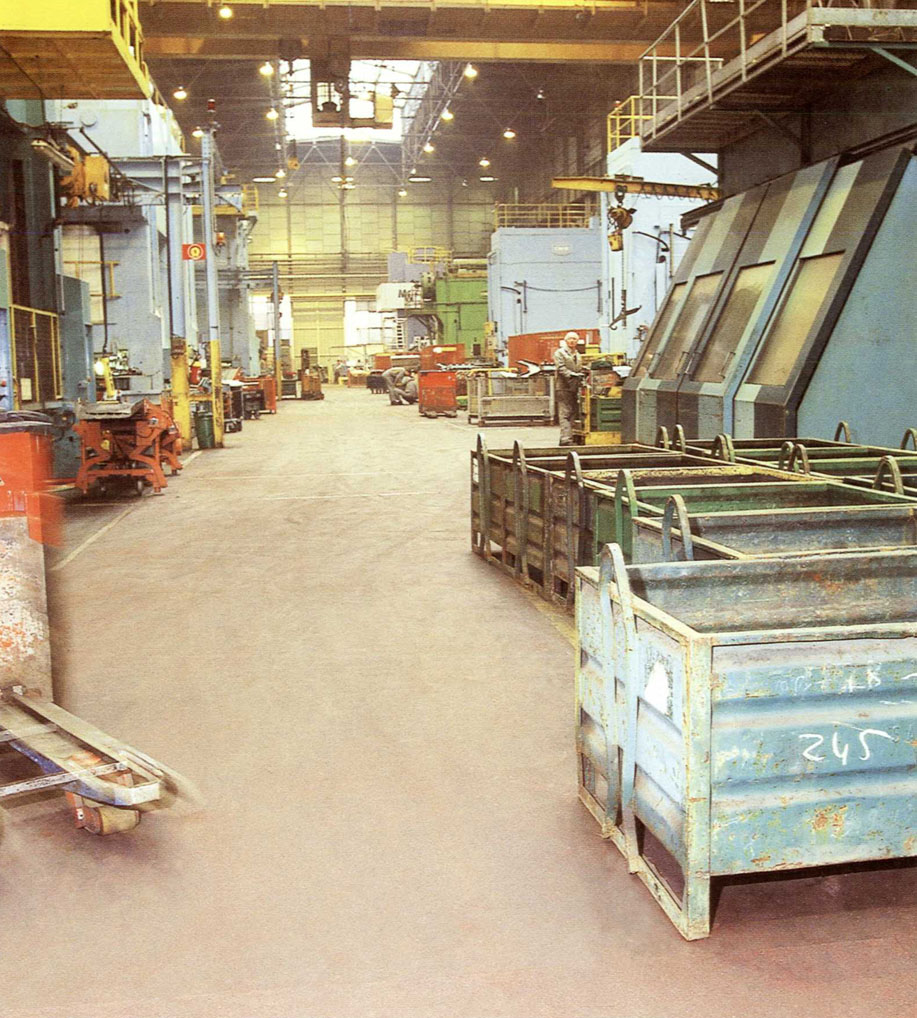

Him floor FC 140 N has been designed for use as a dustproof easily cleaned surface which is resistant to most oils and chemicals. Typical areas of use include warehouses, garages and light industrial areas.


  • Chemicals resistant-good resistance to a wide range of chemicals
  • Non-slips and easy to clean
  • Durable-good resistance to abrasion
  • Attractive-available in a range of RAL colours.
himfloor FC140

Product description

Him floor FC 140n is a two-component solvent based epoxy resin coating. The forms a pigmented, gloss seal to concrete and other substrates. The product is available in a wide range of standard RAL colours


Him floor FC140N can be supplied in 24 standard RAL colours, pleas consult colour card.

Flooring system

2-3 coats of him floor FC140N


The service life of a floor can be considerably extended by good housekeeping; regular cleaning may be carried out using a rotary scrubbing machine with a water miscible cleaning agent at temperature up to 50°C.

Pot life at 20°C

8 hours

Curing time at 20°C

Touch dry after 3 hours, light foot traffic after approx. 24 hours, recoat able after 1 day, within 7 days.

Tool cleaning

Him floor FC140N can be removed from tools and equipment with HIM solvent 102.

Shelf life

Him floor FC140N has a shelf life of 12 months if kept in a dry, cool store in the original, unopened packs.

Safety precautions

Avoid contact with skin and eyes, use only in well ventilated areas. In case of insufficient ventilation, wear suitable respiratory equipment, do not breaths vapour. Wear suitable protective clothing, gloves and eye/ face protection. If swallowed, seek medical advice immediately and show the container or label-do not induce vomiting.
After contact with skin, wash immediately with plenty of water and soap. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.

Keep away from sources of ignition-do not smoke.
For further information, refer to the material safety data sheet.

Flash point

Him floor FC140N base 28°C
Him floor FC140N hardener 23°C
Him floor solvent 102


Disposal of spillage or empty packaging should be in accordance with local waste disposal regulations. For futher information refer to the material safety data sheet.

Technical data

Mixing ratio
Parts by weight
Base: hardener
20 : 10
12 : 10

Specific gravity (mixed) Approx.1.3

Volume solids (mixed) Approx.50%

Temperature resistance

up to 150°C in air

Material consumption
0.1/m 2 =0.13 kg/m 2 per coat depending upon substrate and preparation

Pot life at 20°C 8 hours

Curing time at 20°C
touch dry after 3 hours light foot traffic after approx 24 hours, recoat able after 1 day. Within 7 days.
Chemical resistance
the cured coating is resistant to salts, diluted mineral acids and oils and fats.
For further information on chemical resistance please contact him Netherlands

Temperature limitations

Him floor limitations FC140N shall not be applied at temperatures below 5°C, nor at a substrate temperature which is lower than the dew point temperature plus 3 °C. The maximum application temperature is 35 °C .

Surface preparation

It essential to thorough prepare the floor surface in order to achieve a sound, clean and dry substrate. because Him floor FC140N is a relatively thin coating, the substrate must be fine textured, any surface irregularities may show through causing excessive wear on high spots and changing the perceived colour of the coating. Concrete substrates, a sound, clean substrates is essential to achieve maximum adhesion.
Epoxy screeds: him floor FC140N may be applied to him floor epoxy resin screeds.


New concrete floors should be at least 28 days old and give a hygrometer reading not exceeding not 5% (protimeter).


No primer is necessary.


The individual components of him floor FC140N should be thoroughly stirred before the two are mixed together.
Proper mixing of the components is essential. The entire contents of the hardener components should be poured into the base container. mix the components for at least 3 minutes. The use of a heavy-duty slow speed drill fitted with a mixing paddle is desirable.

Material consumption (theoretical)

0.11/m² =0.13 kg/m² per coat depending upon substrate and preparation.


The mixed him floor FC140N should be applied to the prepared surface using a brush or lambs wool roller. Ensure that the area is completely coated and that “pending” of the material does not occur since solvent may be trapped within the product. Thus preventing complete cure.
The second coat may be applied as soon as the first coat has initially dried ( the next).day the time will be dependent on the type of surface and the ambient conditions.
HIM Industrial and
decorative flooring
for steel and concrete
  HIM Netherlands
Wijkermeerweg 12
PO box 1
1950 AA Velsen-Noord
téléphone +31(0)251-276 300
télécopie +31 251 225 031
HIM France
50 avenue des Frères Lumière
ZA Trappes-Elancourt BP135
78996 trappes cedex
telephone +33 (0)1 30069 3782
fax +33(0)1 3069 3793
Him Belgium
Leenstraat 42
9070 Heusden (O-VL)
telephone +32(0)99 232 1111
télécopie +32(0) 9 230 6906


ISO 9001

Important notice

notice the above data are based on tests believed to be reliable and are given for information only. The data are correct on the issuing date sheet. Since conditions of use are beyond our control, we cannot and do not assume any liability in connection with the use of product relative to coverage performance. Injury or any other achievement. Published data are subject to be modified without prior notice. We therefore advice you to inquire approx. 12 months after issuing date of this data sheet if all data are still valid and up-to-date.
All our deliveries are subject to the uniform sales and delivery conditions for paints and printing ink filed with the registry of the Amsterdam district court. Purchase conditions as supplied by the buyer will not be accepted by us( articles 1 of uniform sales and delivery conditions)
