Him floor
SL2000/ SL3000/ SL4000

HIM

Flow applied, 2- 6 mm thick epoxy
Resin based floor topping

Uses

Him floor SL2000/ SL3000/ SL4000 have been designed for use as seamless floor topping in a wide range of industrial environnement, where a lasting solution to floor maintenance problems is required. They provide a dense, impervious, coloured and chemical resistant floor surface which is hygienic and easy to clean. Typical areas of use include (dry) food process plants, traffic aisles in factories and warehouse, laboratories, showrooms, schools, manufacturing plants and electronic and pharmaceutical manufacturing areas.

Advantages

  • Hygienic-provides a dense, impervious seamless floor surface which is easily cleaned.
  • Fast application-minimizes downtimes
  • Durable-good abrasion resistance
  • Aesthetical appearance-available in a wide range of colours to enhance the working environnement. Can be scattered with flakes.
  • Chemical resistant-good resistance to a wide range of chemicals
himfloor SL2000 | SL3000 | SL4000

Technical data

 Him floor SL2000 Him floor SL3000 Him floor SL4000
Mixing ratio
Parts by weight
Base: hardener: aggregate: colour pot :
7.7:5.6:20:0.5		 Coloupot
7.7:5.6:32:0.5
7.7:5.6:50:0.5
Specific gravity (mixed) Approx.1.7 Approx.1.8 Approx.2.0
Volume solids 100% 100% 100%

Compressive strength

(BS 6319-28 DAYS) 		95 N/mm2 100 N/mm2

100 N/mm2

Flexural strength

(BS 6319-28 DAYS) 		37 N/mm2 41 N/mm2 29 N/mm2
Asmler abrasion resistance 1.5 mm 1.5mm

1.5mm

Temperature resistance
Up to 80°C Up to 80°C Up to 80°C
Material consumption Theoretical)
1.7 kg/m²
Per mm thickness
1.8 kg/m²
Per mm thickness
2.0 kg/m²
Per mm thickness
Potlife at 20°C Approx. 60minutes Approx. 60minutes Approx. 60minutes
Curing time at 20°C
Foot traffic after
Vehicular traffic after
Fully cured after
24 hours
48 hours
7 days
24 hours
48 hours
7 days		 24 hours
48 hours
7 days
Chemical resistance The cured SL floor topping are resistant to petrol, oils and fats, detergents; some aliphatic hydrocarbons and diluted alkalis.

For further information on chemical resistance please contact HIM Netherlands.



Colours

Him floor SL2000/ SL3000/ SL4000 can ba supplied in 24 standard RAL colours. Please consult colour card.

Flooring system

1 layer of Him primer 30 or Him primer 31
1 layer of Him floor SL2000/ SL3000/ SL4000
1 or 2 layers of Him floor FC210

Maintenance

The service life of a floor can be considerably extended by good housekeeping. Regular cleaning may be carried out using a rotary scrubbing machine with a water miscible cleaning agent at temperature up to 50°C

Application

When mixed, Himfloor SL2000/ SL3000 / SL4000 should be poured immediately on to the surface and spread in the right coat thickness with a steel trowel or a float. Using a nylon spiked roller, remove air entrainment and trowel marks and allow to cure. Himfloor SL2000/ SL3000 / SL4000 will become an even coloured, dense, impervious floor topping.
After 30 minutes and within 12 hour (at 20°C). the floor can be rolled again in order to remove possible air entrainment.

Remark

It is possible that under certain circumstances a slightly oily layer is formed on the applied surface. This layer can be easily removed before the floor is being put into use by rinsing the surface with a suitable cleaning agent and water.

Floor finish

Himfloor SL2000/ SL3000 / SL4000 can be over coated with minimum 1 coat, but preferably 2 coats of Himfloor FC 210 clear. The first coat has be applied after minimum 24 hours, but within 7 days.

Himfloor SL2000/ SL3000 / SL4000 needs to be cleaned with HIL solvent 102 before applying the first coat. The second coat can be applied after minimum 24 hours, but within 7 days.

Joints

Expansion joints need to be continued in Him floor SL2000/ SL3000 / SL4000 floor topping.

Pot life at 20 °C

Approx.60 minutes.

Curing time at 20°C

Foot traffic after approx. 24 hours, vehicular traffic 48 hours and fully cured after 7 days.

Tool cleaning

Him floor SL2000/ SL3000 / SL4000 should be removed from tools and equipment with him solvent 102 immediately after use. Hardened material can only be removed mechanically.

Shelf life

Him floor SL2000/ SL3000 / SL4000 has a shelf life of 12 months if kept in a dry, cool store in the original, unopened packs.

Flash points

Himprimer 30 base > 100°C
Himprimer 30 hardener > 100°C
Himprimer 31 hardener > 100°C
HIM primer 31 hardener > 100°C
Himfloor SL2000/ SL3000 / SL4000 base > 100°C
Himfloor SL2000/ SL3000 / SL4000 hardener 57 °C
Himfloor FC 210 base 25°C
Himfloor FC 210 hardener 38°C
HIMsolvent 102 32°C

Disposal

Disposal of spillage or empty packaging be in accordance with local waste disposal regulations. For further information refer to the material safety data sheet.

Product description

Him floor SL2000/ SL3000/ SL4000 consist of graded aggregates bound in a pigmented epoxy resin binder. All SL flooring products are supplied as a four-component system, pre-weighed for on site- mixing or in bulk components. They are flow applied floor topping for use at a thickness of resp. 2 mm (him floor SL2000), 3 mm (him floor SL3000), or 4-6 ( him floor SL4000).
When laid him floor SL 2000/SL 3000/SL 4000, provide a smooth, light reflective surface. They are available in a wide range of standard RAL colours and can be scattered with flakes.

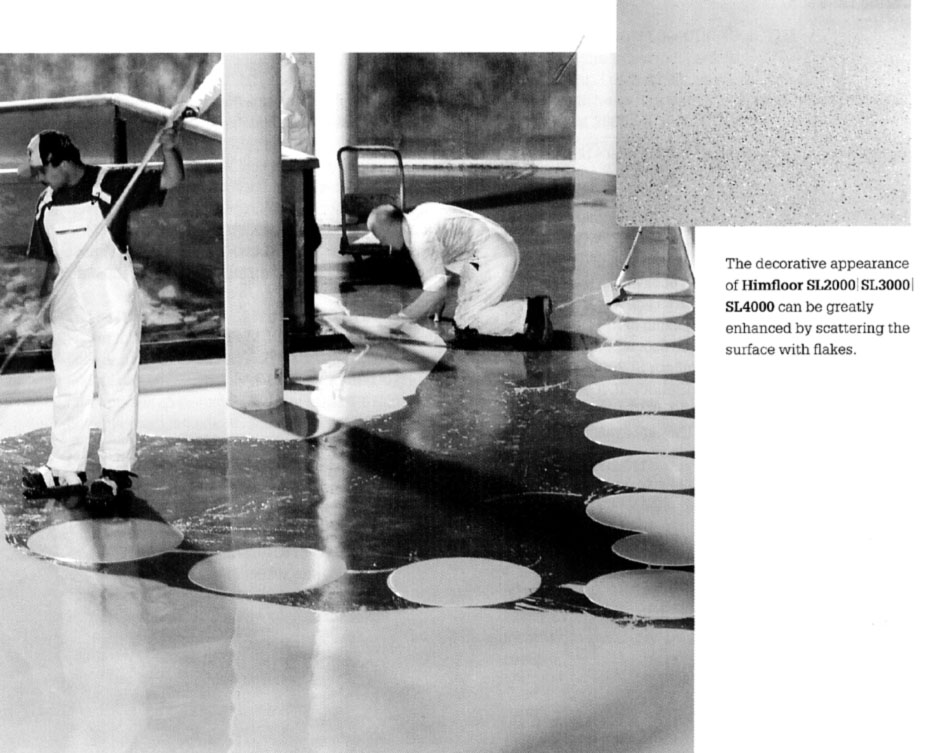

Fakes

The decorative appearance of Him floor SL2000/ SL3000/ SL4000can be greatly enhanced by scattering the surface with flakes mixtures is available.

Temperature limitations

Him floor SL2000/ SL3000 / SL4000 should not be applied at temperature below 5°C, or at a substrate temperature which is lower than the dew point plus 3°C.
The maximum application temperature is 35°C .

Surface preparation

It is essential to thoroughly prepare the floor surface in order to achieve a sound, clean and dry substrate. Concrete substrate acid wash, gritblsting, milling, or a combination of these techniques.
The substrate needs to be levelled before applying Him floor SL2000/ SL3000/ SL4000.

Limitations

New concrete floors should be at least 28 days old and give a hygrometer reading not exceeding 5% (protimeter).

With non-self-supporting concrete floors transfer of moisture from the soil might occur, resulting in adhesion failures of the flooring system. In order to judge the suitability of a substrate beforehand: apply the rubber mat test.

Primer

Apply HIM primer 30 or HIM primer 31 on the prepared substrate. Mix both components of the primer till a homogeneous mixture is obtained. The primer should be applied immediately with a roller or brush in a thin continuous film. Gare should be taken to avoid over application or puddles. If the existing floor is very porous second coat may be necessary. Him floor SL2000/ SL3000/ SL4000 is applied when the primer is tack-free.

Mixing

Proper mixing of the components essential. mix the base and hardner in a mixing vessl.add the colour pot and mix till an even colour shown .add the aggregate filler and mix all components for another 3-5 minutes till a homogeneous mixture is obtained . do not add solvent. It is important that all components are intermixed thoroughly with a forced-action mixer or an approved spiral paddle in a slow speed heavy-duty drill so that no traces of the components remain unmixed.

Material consumption (theoretical)

Him floor SL 2000:1.7 kg/m 2 per mm thickness
Him floor SL 3000:1.8 kg/m 2 per mm thickness
Him floor SL 4000:2.0 kg/m 2 per mm thickness

Safety precautions

Avoid contact with skin and eyes. Use only in well ventilated areas. In case of insufficient ventilation, wear suitable respiratory equipment. Does not breath vapour. Wear suitable protective clothing, gloves and eye/face protection. if swllowed, seek medical advice immediately and show the container or label-do not induce vomiting.
After contact with skin, wash immediately with plenty of water and soap. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
Keep away from sources of ignition-no smoking.
For further information, refer to the material safety data sheet
HIM Industrial and
decorative flooring
protective coatings
for steel and concrete

  HIM Netherlands
Wijkermeerweg 12
PO box 1
1950 AA Velsen-Noord
téléphone +31(0)251-276 300
télécopie +31 251 225 031		 HIM France
50 avenue des Frères Lumière
ZA Trappes-Elancourt BP135
78996 trappes cedex
telephone +33 (0)1 30069 3782
fax +33(0)1 3069 3793 		Him Belgium
Leenstraat 42
9070 Heusden (O-VL)
telephone +32(0)99 232 1111
télécopie +32(0) 9 230 6906

DNV

 company
certified ISO 9001

Important notice

notice the above data are based on tests believed to be reliable and are given for information only. The data are correct on the issuing date sheet. Since conditions of use are beyond our control, we cannot and do not assume any liability in connection with the use of product relative to coverage performance. Injury or any other achievement. Published data are subject to be modified without prior notice. We therefore advice you to inquire approx. 12 months after issuing date of this data sheet if all data are still valid and up-to-date.
All our deliveries are subject to the uniform sales and delivery conditions for paints and printing ink filed with the registry of the Amsterdam district court. Purchase conditions as supplied by the buyer will not be accepted by us( articles 1 of uniform sales and delivery conditions)
